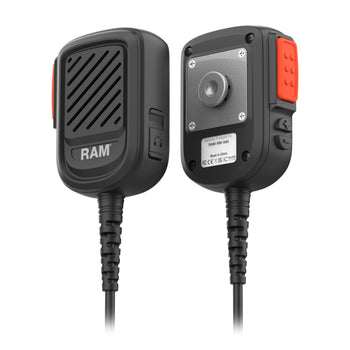

RAM® Remote Microphone with USB-C for Kodiak
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- Service compatibility specifically tested to work with Motorola's Kodiak network-integrated platform
- Lightweight and simple design with clear access to volume buttons, audio port, and PTT button
- Backed by a 3-year warranty
The RAM® Remote Microphone with USB-C for Kodiak (RAM-RM-A05) provides reliable push-to-talk (PTT) functionality through a USB-C connection and intended to support Push-to-Talk over Cellular (PoC). Designed for use in loud environments, this remote microphone gives operators the flexibility to connect an external amplified speaker—ideal for public safety, pupil transportation, commercial fleets, and more.
hardware included
(1) Microphone
(1) Mounting Clip & Hardware
packaging type
Poly Bag
power specifications
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67
operating temperature
-10°C to +55°C
ports
3.5mm TS Female - Mono Audio Out Only
certifications
IP67, IPCWHAA-A-620B Pull Strength
USB-IF Certified
FCC, UKCA, CE (RED), RoHS, WEEE, IC
Weight
0.21 kg
