RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Four-point aluminium plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness
- 4-hole AMPS and VESA patterns for attaching C or D size RAM® drill-down ball bases
- External magnets include handles for ease of install
- Backed by a lifetime warranty

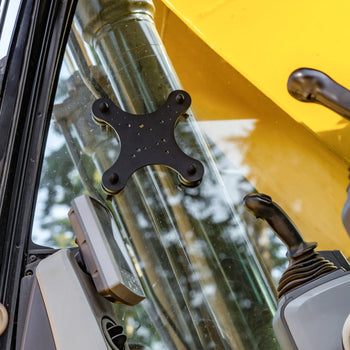

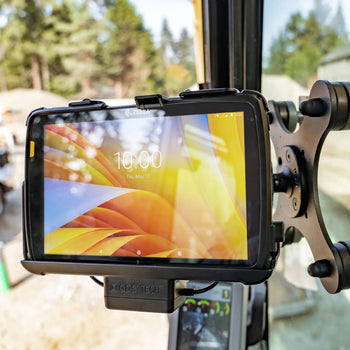

The RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base (RAM-MAG48-4SU) consists of an aluminium plate with four magnetic ends and four 48mm external magnets for mounting any flat glass surface, like windows. The plate contains pre-drilled 4-hole AMPS and VESA patterns for attaching a recommended C, or D size drill-down ball base. The base is designed with rubber coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle in order to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness.
hardware included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(3) 5/16"-18 x 1" Machine Screws
(3) 5/16" Nylock Nuts
product dimensions
Overall Length: 8.99"
Overall Width: 8.99"
Overall Thickness (inside surface): 1.64"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
packaging type
Poly Bag
Weight
2.05 kg
