RAM® Tough-Mag™ 48MM 4-Point Pivoting Magnetic Mounting Base
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Four-point aluminium plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness

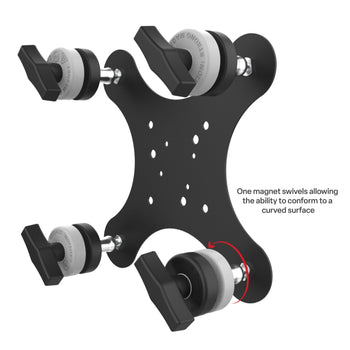

- Single corner with pivoting hardware allows base to confirm to a curved surface

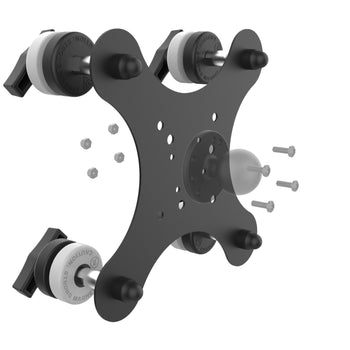

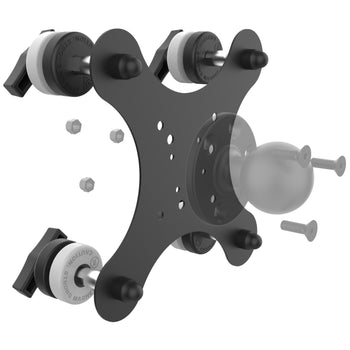

- 4-hole AMPS and VESA patterns for attaching C or D size RAM® drill-down ball bases
- External magnets include handles for ease of install
- Backed by a lifetime warranty
The RAM® Tough-Mag™ 48MM 4-Point Pivoting Magnetic Mounting Base (RAM-MAG48-4S-PIV1U) is a versatile mounting solution designed for flat glass or metal surfaces such as vehicle windows, windshields, or other sturdy panels. This aluminium plate features four external 48mm magnets, three fixed and one pivoting corner magnet, for added flexibility when positioning and securing the base. The plate includes pre-drilled 4-hole AMPS and VESA patterns, allowing easy attachment of a C or D size drill-down ball base. Each rubber-coated magnet prevents scratches, reduces harsh magnetic pull, and includes a handle for quick installation and removal. The pivoting corner ensures easier alignment on curved or uneven surfaces while maintaining a rock-solid hold. Compatible with any flat surface up to 6mm thick, this magnetic mounting base provides strength, adjustability, and convenience for demanding applications.
Components
hardware included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(3) 5/16"-18 x 1" Machine Screws
(3) 5/16" Nylock Nuts
hole pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
packaging type
Poly Bag
Weight
2.24 kg
