RAM® Tough-Mag™ 48MM 3-Point Pivoting Magnetic Mounting Base
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features
- Three-point aluminium plate with 2 sets of 3 rubber coated external magnets for attaching to windows up to 6mm in thickness

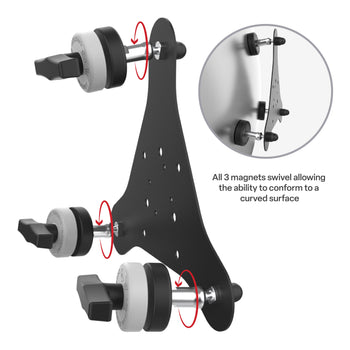

- All 3 attachment points feature pivoting hardware that allows the base to confirm to a curved surface
- 4-hole AMPS patterns for attaching C RAM® drill-down ball bases
- External magnets include handles for ease of install
- Backed by a lifetime warranty
The RAM® Tough-Mag™ 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U) offers a flexible, high-strength solution for securing devices to flat glass or metal surfaces, including vehicle windows and windshields. Constructed with a durable aluminium plate, this base features three pivoting 48mm external magnets that adjust independently to ensure a secure hold on slightly curved or uneven surfaces. The plate includes a pre-drilled 4-hole AMPS pattern, ideal for attaching a C size drill-down ball base. Each magnet is rubber-coated to protect mounting surfaces, minimize harsh magnetic pull, and comes with an integrated handle for fast installation and removal. With its fully pivoting magnetic attachment points, this base provides unmatched versatility and secure mounting for any sturdy surface up to 6mm thick.
Components
hardware included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(3) 5/16"-18 x 1" Machine Screws
(3) 5/16" Nylock Nuts
hole pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
packaging type
Poly Bag
Weight
1.8 kg
