RAM® Large Round Plate with 6-Hole Pattern and Ball - E Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

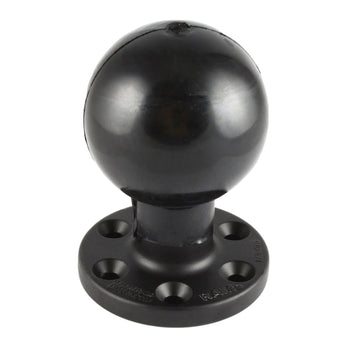

The RAM-E-202U-SYM1 consists of a 3.38" diameter rubber ball, connected at right angles to a 3.68" diameter round base. There are 6 pre-drilled holes in the base.
hole pattern

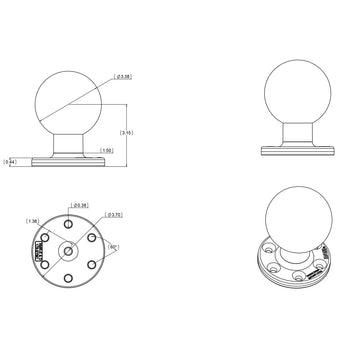

See Drawing
ball size
E Size (3.35")
weight capacity
Standard Use: 15 lbs
Heavy-Duty Use: 10 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.81 kg
